Products:
Mainly used for indoor air purification, flue gas purification, oil and gas recovery, organic waste gas treatment, etc.

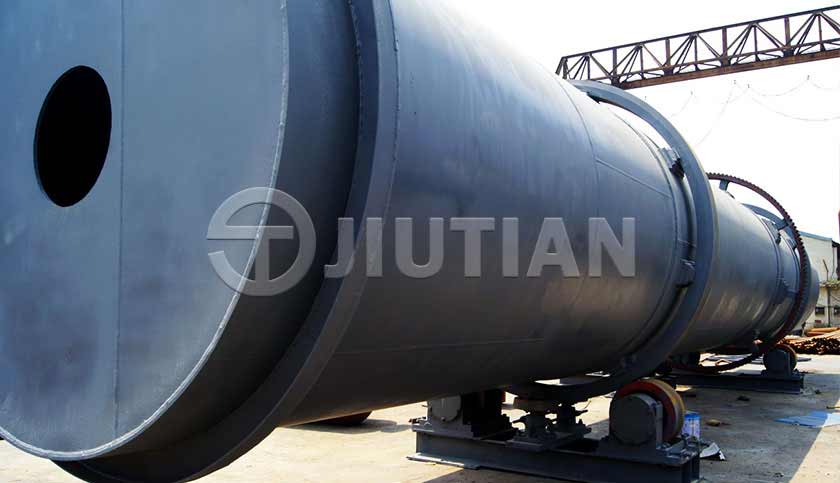

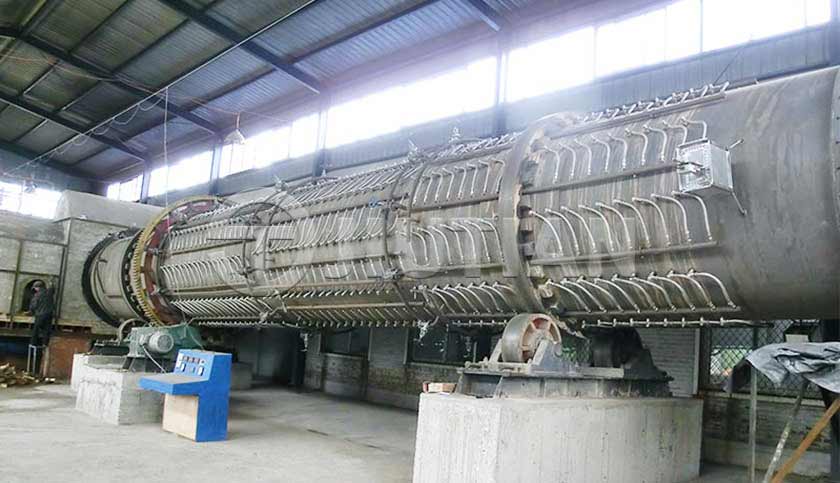

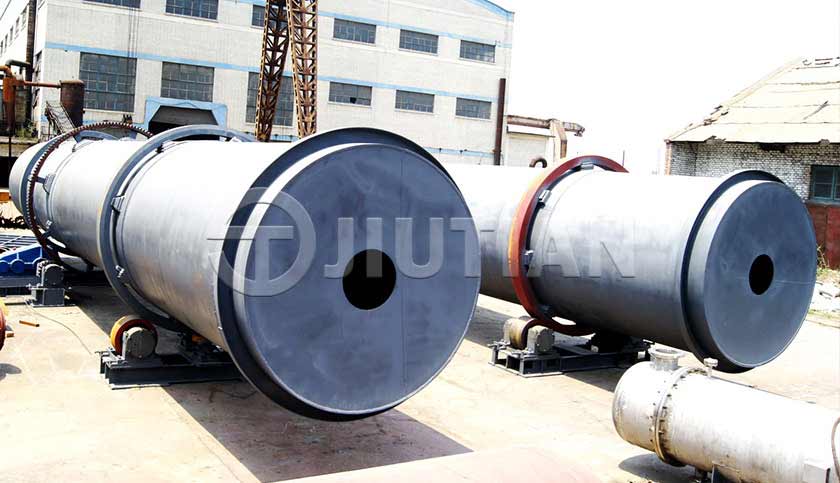

Coconut shell activated carbon carbonization furnace (carbonization machine) is a device that decomposes coconut shell by heat to produce high carbon content materials under the condition of isolating air or introducing trace gas.
1. The material is dynamically pyrolyzed, heated evenly, and there is no phenomenon of entrainment. The product has excellent indicators such as high carbon content, low ash content, and low volatile content.
2. The pyrolysis temperature is much lower than that of traditional earthen kilns. The special heat conduction and heat carrier internal circulation system minimizes the energy consumption of the carbonization machine, which is about 15% of its own energy. The vast majority of energy is preserved in the form of carbon, gas, and oil.
3. The indirect heating method is used to transfer heat, so that the temperature of the exhaust gas in the interlayer of the furnace is about 300 °C, which can be used for raw material drying or heat exchanger for reuse and recycling.
4. The amount of tail gas emitted by the carbonization process is greatly reduced compared to the amount emitted by the incineration method, only 1/10. There are huge advantages in terms of environmental protection.
1. The material is dynamically pyrolyzed, heated evenly, and there is no phenomenon of entrainment. The product has excellent indicators such as high carbon content, low ash content, and low volatile content;
2. The pyrolysis temperature is much lower than that of traditional earthen kilns. The special heat conduction and heat carrier internal circulation system minimizes the energy consumption of the carbonization machine, which is about 15% of its own energy. The vast majority of energy is preserved in the form of carbon, gas, and oil;
3. The indirect heating method is used to transfer heat, so that the temperature of the exhaust gas in the interlayer of the furnace is about 300 °C, which can be used for raw material drying or heat exchanger for reuse and recycling；
4. The amount of tail gas emitted by the carbonization process is greatly reduced compared to the amount emitted by the incineration method, only 1/10. There are huge advantages in terms of environmental protection.
| Model | Capacity(kg/h) | Drum Diameter(m) | Drum Length(m) | Size(m)L*W*H | Output Ratio |
|---|---|---|---|---|---|
| JTACM-RK01 | 80-100 | 2.2 | 10 | 11.1*2.6*3.0 | 2.2-2.6：1 |
| JTACM-RK02 | 120-150 | 2.5 | 10 | 11.3*3.0*3.5 | 2.2-2.6：1 |
| JTACM-RK03 | 170-200 | 2.8 | 10 | 11.5*3.4*4.0 | 2.1-2.5：1 |
| JTACM-RK04 | 250-300 | 2.8 | 15 | 16.5*3.4*4.0 | 2.1-2.5：1 |
| JTACM-RK05 | 320-400 | 3.2 | 15 | 16.6*3.8*4.4 | 2.1-2.5：1 |
| JTACM-RK06 | 430-540 | 3.6 | 15 | 16.6*4.2*4.8 | 2.1-2.5：1 |
The equipment is suitable for a variety of materials,Welcome to consult customer service at any time, we will customize the equipment according to your needs.
