The product can be used as organic fertilizer
The Continuous Azolla Biochar Machine is equipment that carbonizes Azolla under high temperature conditions in a carbonization machine.
By carbonizing Azolla feedstock with the biochar machine, biochar with high fixed carbon content and a low H/Corg ratio is obtained. This biochar can be used for carbon credit applications and mixed with animal manure, such as cow dung, to produce biochar-based fertilizer pellets, generating two sources of income.
Azolla carbonization machine is a device that heats and azolla or other biomass materials under oxygen-free conditions to produce biochar, combustible gas, etc.

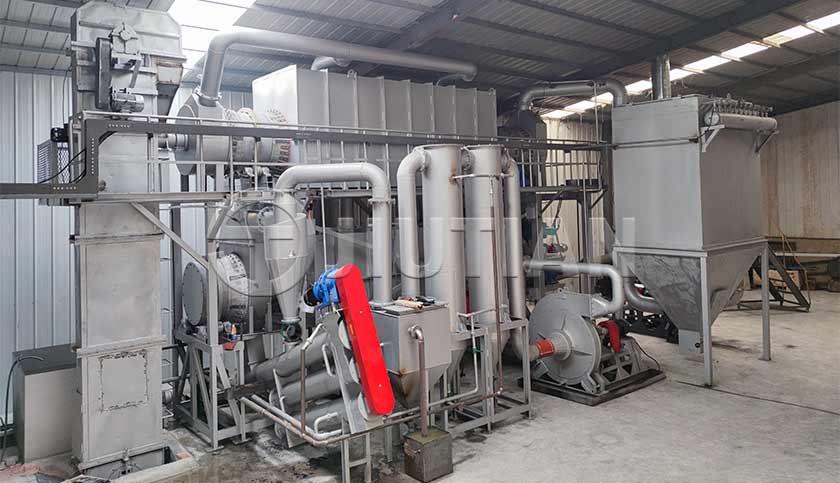

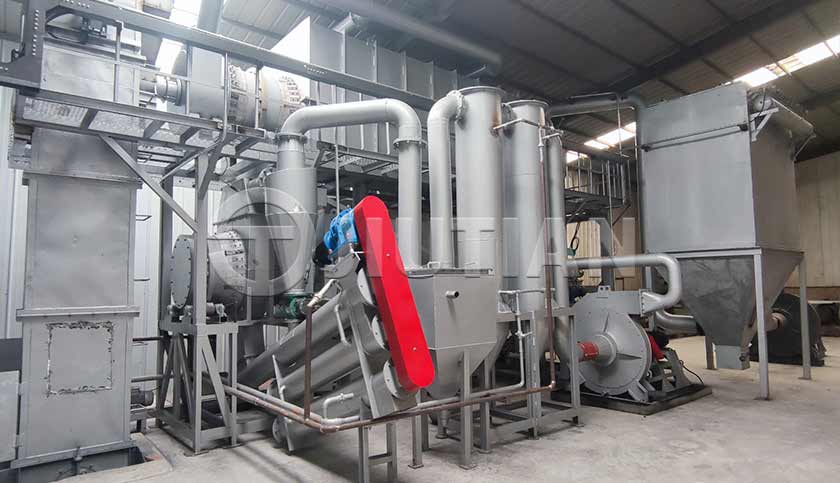

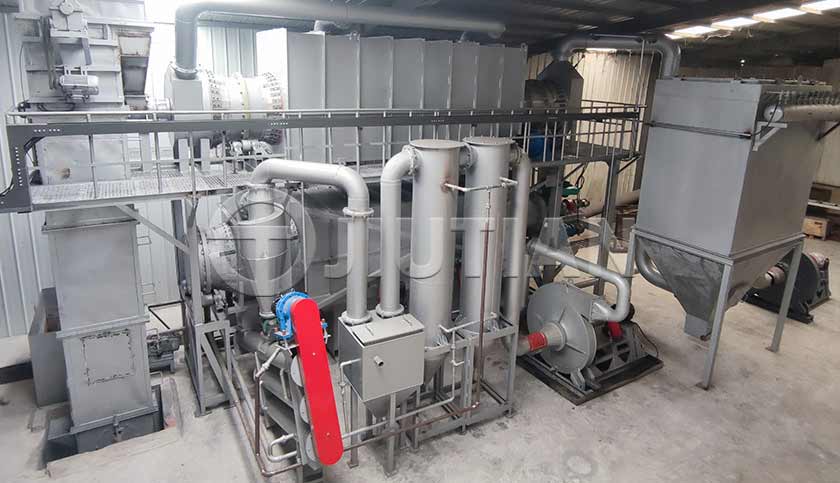

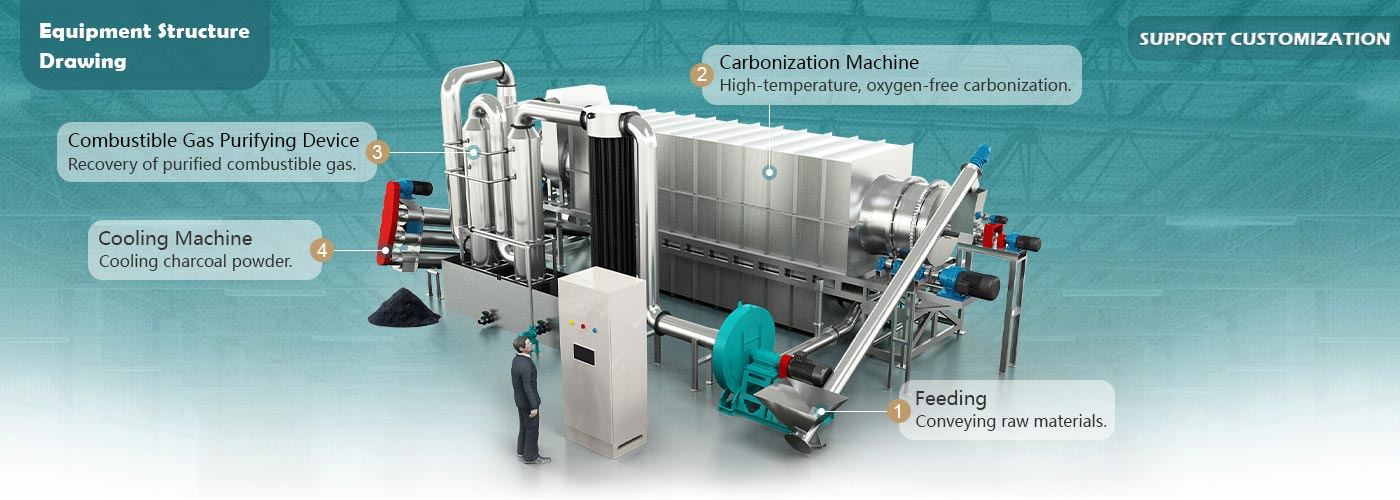

The Azolla Biochar Machine consists of equipment such as a conveyor, main drum, dust removal system, purification system, burner, and distribution cabinet. It adopts an upper-lower layer design, significantly improving drying and carbonization efficiency. This newly developed continuous carbonization equipment integrates high efficiency, environmental protection, and intelligence.
The high-quality Azolla biochar produced has a high fixed carbon content and an H/Corg ratio of <0.2, meeting the highest quality standards of Puro Earth.
The entire production line can also be equipped with a mixer, pellet machine, and pellet drying machine, allowing the produced biochar-based organic fertilizer pellets to be directly packaged and sold.

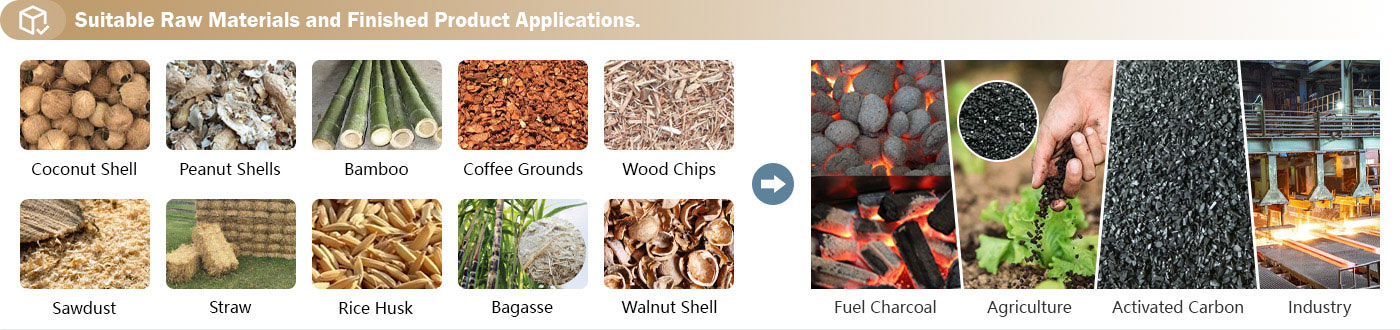

1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
| Model | Diameter(mm) | The drum length(m) | Carbon capacity(kg/h) | Drum speed(rpm) | Dimension(m) |
| JTTJ1010 | 1000 | 10 | 100-200 | 1.5-2.5 | 10.0*1.7*2.8 |
| JTTJ1210 | 1200 | 10 | 200-300 | 1.5-2.5 | 10.0*2.0*3.0 |
| JTTJ1410 | 1400 | 10 | 400-500 | 1.5-2.5 | 10.0*2.2*3.2 |
| JTTJ1612 | 1600 | 12 | 600-800 | 2.0-3.0 | 10.0*2.4*3.5 |
| JTTJ1912 | 1900 | 12 | 900-1100 | 2.0-3.0 | 12.0*2.8*3.8 |
| JTTJ2212 | 2200 | 12 | 1200-1500 | 2.0-3.0 | 12.0*3.2*4.2 |
| JTTJ2512 | 2500 | 12 | 1600-2000 | 2.0-3.0 | 12.0*3.5*4.5 |
| JTTJ3012 | 3000 | 12 | 2200-2600 | 2.0-3.0 | 12.0*4.0*5.0 |
| JTTJ3612 | 3600 | 12 | 3000-3800 | 2.0-3.0 | 12.0*4.6*5.6 |
The equipment is suitable for a variety of materials,Welcome to consult customer service at any time, we will customize the equipment according to your needs.
