Products:
Mainly used for indoor air purification, flue gas purification, oil and gas recovery, organic waste gas treatment, etc.

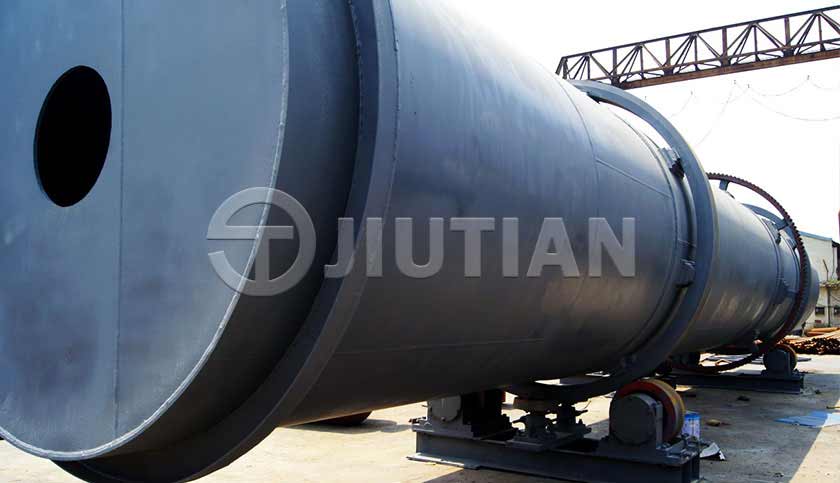

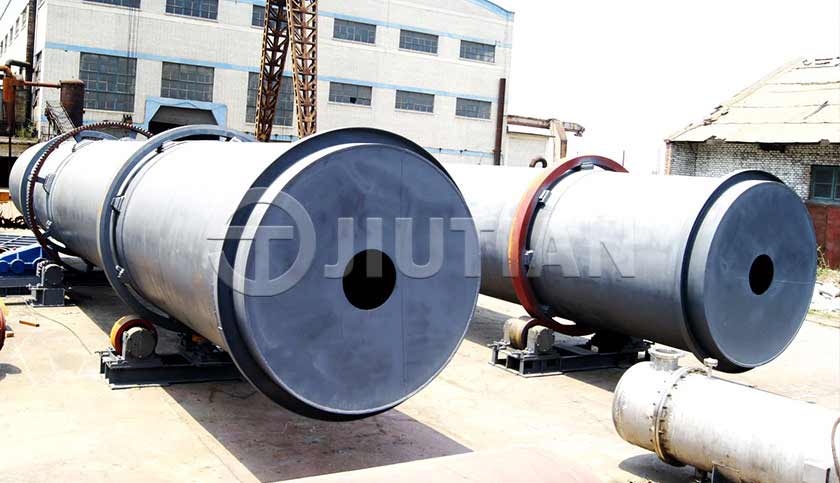

Jiutian smokeless activated carbon continuous carbonization furnace is a new type of high-efficiency, energy-saving and environmentally friendly carbonization equipment. It can be applied to a variety of materials, and one machine can be used for multiple purposes. Activated carbon carbonization furnace (carbonization machine) is a device that decomposes coconut shell by heat to produce high carbon content materials under the condition of isolating air or introducing trace gas.

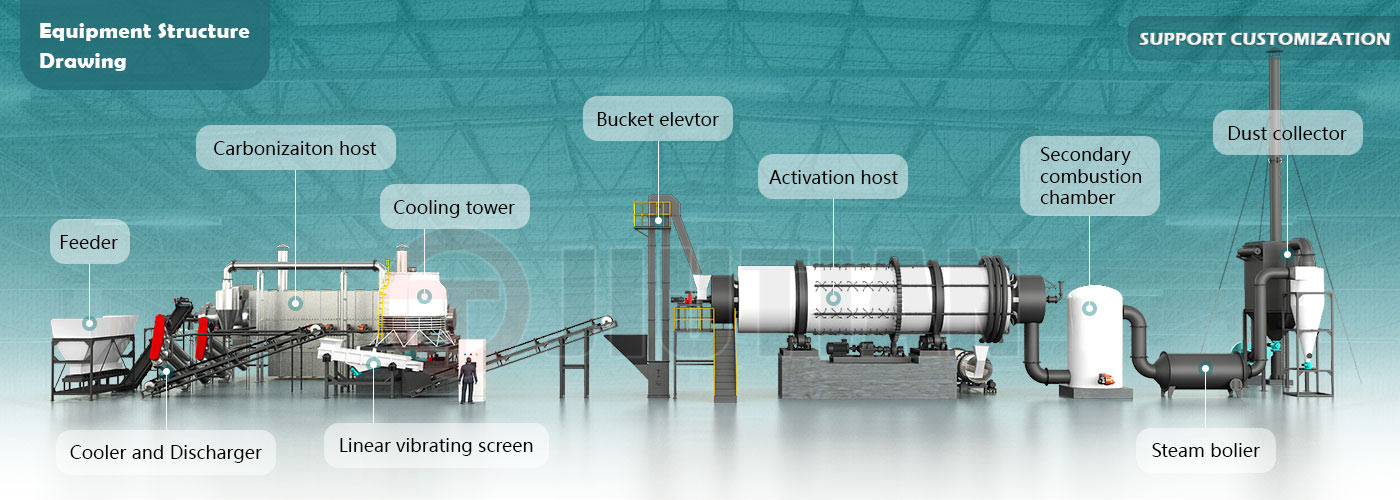

The overall production line reflects the general principles of advanced, efficient, stable, energy-saving, environmentally friendly, safe, frugal and reasonable.The main equipment uses matching drum carbonization machine, drum activation machine and feeding device, conveying device, combustible gas purification device, cooling carbonization device, PLC control system to form the layout of the carbonization activation production line.
Carbonization production line includes silo, conveying equipment, carbonization host, combustible gas purification equipment, dust removal equipment and cooling carbonization equipment.
Activation production line includes screening equipment, conveying equipment, activation host, waste gas treatment and recovery system, dust removal system and PLC control system.
1. The material is dynamically pyrolyzed, heated evenly, and there is no phenomenon of entrainment. The product has excellent indicators such as high carbon content, low ash content, and low volatile content;
2. The pyrolysis temperature is much lower than that of traditional earthen kilns. The special heat conduction and heat carrier internal circulation system minimizes the energy consumption of the carbonization machine, which is about 15% of its own energy. The vast majority of energy is preserved in the form of carbon, gas, and oil;
3. The indirect heating method is used to transfer heat, so that the temperature of the exhaust gas in the interlayer of the furnace is about 300 °C, which can be used for raw material drying or heat exchanger for reuse and recycling;
4. The amount of tail gas emitted by the carbonization process is greatly reduced compared to the amount emitted by the incineration method, only 1/10. There are huge advantages in terms of environmental protection.
| Model | Output (kg/h) | Drum diameter (m) | Roller length (m) | Overall dimensions (m) | Output ratio (%) |
|---|---|---|---|---|---|
| JTACM-100 | 80-100 | 1.9 | 14 | 15.2*2.2*2.6 | 2.2-2.5：1 |
| JTACM-150 | 120-150 | 2.2 | 15 | 16.3*2.6*3.1 | 2.2-2.5：1 |
| JTACM-200 | 170-200 | 2.5 | 15 | 16.5*3.0*3.5 | 2.1-2.5：1 |
| JTACM-300 | 250-300 | 2.8 | 15 | 16.5*3.4*4.0 | 2.1-2.5：1 |
| JTACM-400 | 320-400 | 3.2 | 15 | 16.6*3.8*4.4 | 2.1-2.5：1 |
| JTACM-500 | 430-540 | 3.6 | 15 | 16.6*4.2*4.8 | 2.1-2.5：1 |
The equipment is suitable for a variety of materials,Welcome to consult customer service at any time, we will customize the equipment according to your needs.
